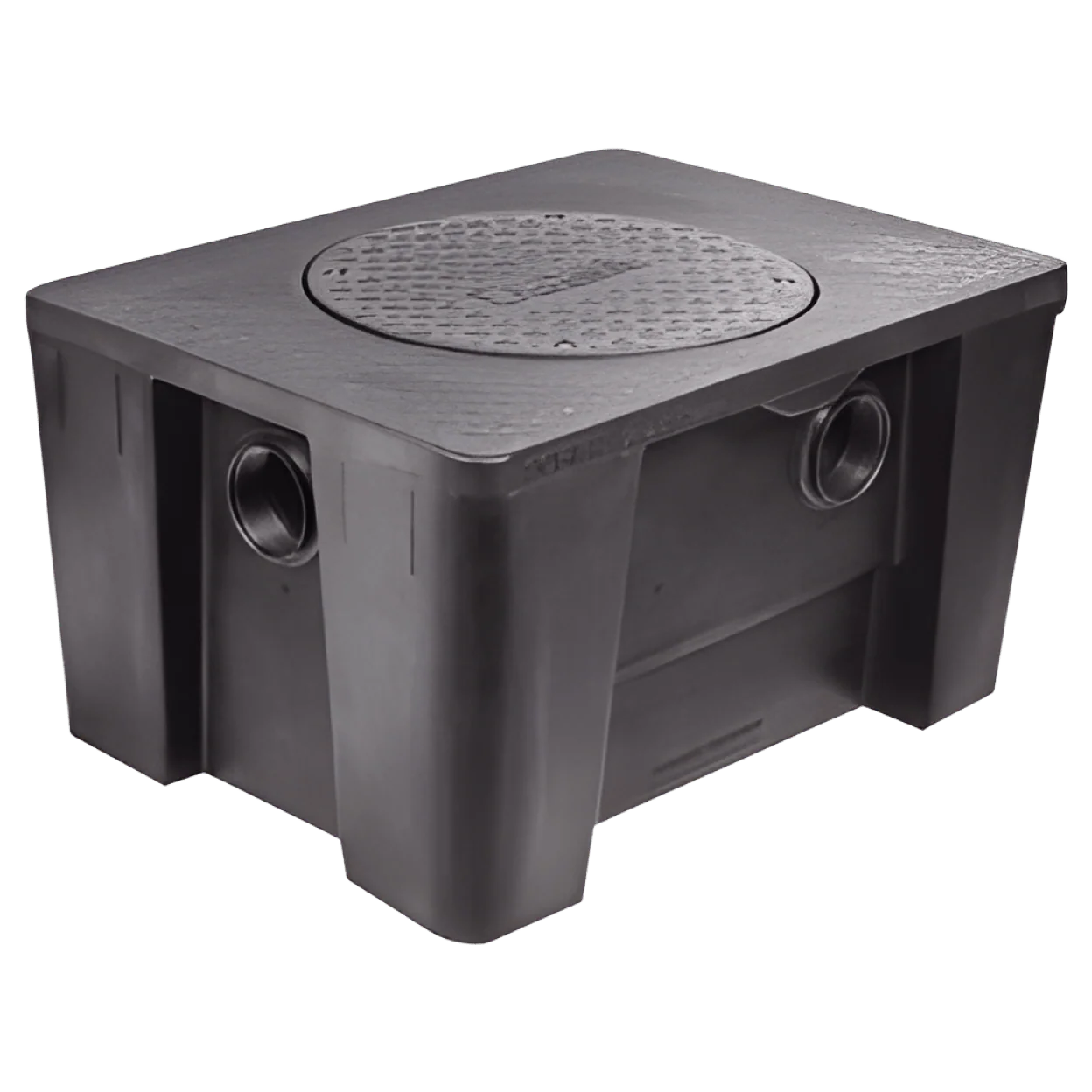

Schier GB3 Hydromechanical Grease Interceptor, Indoor, 40 Gallon Liquid Capacity
The GB3 can be installed above-grade (on the floor) or buried below-grade (compatible with FCR1 riser to bring system to grade). The triple outlet feature allows for installation flexibility, including the ability to connect an unused outlet for remote pump out (PP1 compatibility).
- Rugged polyethylene tank
- Built-in Flow Control Cartridgeā¢, easy to remove for cleaning
- Compact design that installs under sinks, on the floor or buried below grade
- Built-in triple outlet for installation flexibility
- Includes plain end fittings to connect to 4 inch pipe
- Uses FCR1 field cut riser system for a maximum extension of 25 inch
- Flow Rate/Grease Capacity: 50 GPM (3.2 L/s) / 272 lbs (123.4 kg), 75 GPM (4.7 L/s) / 175 lbs (79.4 kg)
- Solids CapacityĀ 1.9 gal (7.2 L), Liquid CapacityĀ 40 gal (151.4 L)
- WeightĀ 69 lbs (31.3 kg)
- Installation LocationĀ Indoor
The GB3 can be installed above-grade (on the floor) or buried below-grade (compatible with FCR1 riser to bring system to grade). The triple outlet feature allows for installation flexibility, including the ability to connect an unused outlet for remote pump out (PP1 compatibility).
- Rugged polyethylene tank
- Built-in Flow Control Cartridgeā¢, easy to remove for cleaning
- Compact design that installs under sinks, on the floor or buried below grade
- Built-in triple outlet for installation flexibility
- Includes plain end fittings to connect to 4 inch pipe
- Uses FCR1 field cut riser system for a maximum extension of 25 inch
- Flow Rate/Grease Capacity: 50 GPM (3.2 L/s) / 272 lbs (123.4 kg), 75 GPM (4.7 L/s) / 175 lbs (79.4 kg)
- Solids CapacityĀ 1.9 gal (7.2 L), Liquid CapacityĀ 40 gal (151.4 L)
- WeightĀ 69 lbs (31.3 kg)
- Installation LocationĀ Indoor
Select Style
From $532.97
Original: $1,522.78
-65%Schier GB3 Hydromechanical Grease Interceptor, Indoor, 40 Gallon Liquid Capacityā
$1,522.78
$532.97Description
The GB3 can be installed above-grade (on the floor) or buried below-grade (compatible with FCR1 riser to bring system to grade). The triple outlet feature allows for installation flexibility, including the ability to connect an unused outlet for remote pump out (PP1 compatibility).
- Rugged polyethylene tank
- Built-in Flow Control Cartridgeā¢, easy to remove for cleaning
- Compact design that installs under sinks, on the floor or buried below grade
- Built-in triple outlet for installation flexibility
- Includes plain end fittings to connect to 4 inch pipe
- Uses FCR1 field cut riser system for a maximum extension of 25 inch
- Flow Rate/Grease Capacity: 50 GPM (3.2 L/s) / 272 lbs (123.4 kg), 75 GPM (4.7 L/s) / 175 lbs (79.4 kg)
- Solids CapacityĀ 1.9 gal (7.2 L), Liquid CapacityĀ 40 gal (151.4 L)
- WeightĀ 69 lbs (31.3 kg)
- Installation LocationĀ Indoor
