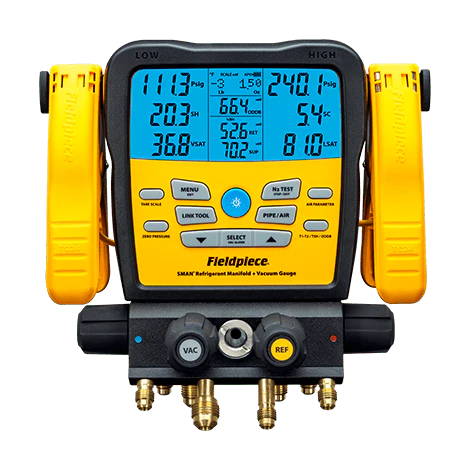

Fieldpiece Wireless 4-Port SMAN Refrigerant Manifold with Built-In Vacuum Gauge
Supports over 70 refrigerants, A2L Compatible, Features an integral vacuum gauge, Logs hours of data, Runs a temperature compensated nitrogen pressure test, Displays in 12 languages, Serves as a central data hub for Job Link® wireless tools and connects to the Job Link® system app, Dust and water resistant (IP55), Ports: (4) 1/4 inch for suction line, liquid line and refrigerant recovery/charging, Display: LCD (5 inches diagonal), Backlight: Blue (adjustable duration), Low Battery Indication: displayed when the battery voltage drops below the operating level, Auto Power Off: 30 minutes of inactivity (adjustable), Battery Type: (6) AA alkaline, Battery Life: 405 hours (w/ backlight and wireless OFF), Radio Frequency: 2.4 GHz, Wireless Range: 1000 feet (305 meters) line of sight, distance decreases with obstructions, Data Port: USB-C (for extracting data logs or updating firmware), Maximum Manifold Pressure: 870 Psig (6000 kPa), Vacuum: 50 to 9999 microns, Temperature Measurement Range: -50 Deg to 257 Deg F (-46 Deg to 125 Deg C), Operating Environment: -10 Deg C to 50 Deg C (14 Deg F to 122 Deg F) at <75 Percent RH, Storage Environment: -20 Deg C to 60 Deg C (-4 Deg F to 140 Deg F) at <80 Percent RH (with battery removed), Dimensions: 8.75 inch W x 8.5 inch H x 3.75 inch D, Weight: 4.6 lbs (1.8 kg), Water Resistant: Tested to IP55
Supports over 70 refrigerants, A2L Compatible, Features an integral vacuum gauge, Logs hours of data, Runs a temperature compensated nitrogen pressure test, Displays in 12 languages, Serves as a central data hub for Job Link® wireless tools and connects to the Job Link® system app, Dust and water resistant (IP55), Ports: (4) 1/4 inch for suction line, liquid line and refrigerant recovery/charging, Display: LCD (5 inches diagonal), Backlight: Blue (adjustable duration), Low Battery Indication: displayed when the battery voltage drops below the operating level, Auto Power Off: 30 minutes of inactivity (adjustable), Battery Type: (6) AA alkaline, Battery Life: 405 hours (w/ backlight and wireless OFF), Radio Frequency: 2.4 GHz, Wireless Range: 1000 feet (305 meters) line of sight, distance decreases with obstructions, Data Port: USB-C (for extracting data logs or updating firmware), Maximum Manifold Pressure: 870 Psig (6000 kPa), Vacuum: 50 to 9999 microns, Temperature Measurement Range: -50 Deg to 257 Deg F (-46 Deg to 125 Deg C), Operating Environment: -10 Deg C to 50 Deg C (14 Deg F to 122 Deg F) at <75 Percent RH, Storage Environment: -20 Deg C to 60 Deg C (-4 Deg F to 140 Deg F) at <80 Percent RH (with battery removed), Dimensions: 8.75 inch W x 8.5 inch H x 3.75 inch D, Weight: 4.6 lbs (1.8 kg), Water Resistant: Tested to IP55
Description
Supports over 70 refrigerants, A2L Compatible, Features an integral vacuum gauge, Logs hours of data, Runs a temperature compensated nitrogen pressure test, Displays in 12 languages, Serves as a central data hub for Job Link® wireless tools and connects to the Job Link® system app, Dust and water resistant (IP55), Ports: (4) 1/4 inch for suction line, liquid line and refrigerant recovery/charging, Display: LCD (5 inches diagonal), Backlight: Blue (adjustable duration), Low Battery Indication: displayed when the battery voltage drops below the operating level, Auto Power Off: 30 minutes of inactivity (adjustable), Battery Type: (6) AA alkaline, Battery Life: 405 hours (w/ backlight and wireless OFF), Radio Frequency: 2.4 GHz, Wireless Range: 1000 feet (305 meters) line of sight, distance decreases with obstructions, Data Port: USB-C (for extracting data logs or updating firmware), Maximum Manifold Pressure: 870 Psig (6000 kPa), Vacuum: 50 to 9999 microns, Temperature Measurement Range: -50 Deg to 257 Deg F (-46 Deg to 125 Deg C), Operating Environment: -10 Deg C to 50 Deg C (14 Deg F to 122 Deg F) at <75 Percent RH, Storage Environment: -20 Deg C to 60 Deg C (-4 Deg F to 140 Deg F) at <80 Percent RH (with battery removed), Dimensions: 8.75 inch W x 8.5 inch H x 3.75 inch D, Weight: 4.6 lbs (1.8 kg), Water Resistant: Tested to IP55
